This slide was generated for the topic:Comparing Nested Layouts and Routing Boundaries in Remix and Next.js
Description provided by the user:This slide provides a visual, side-by-side comparison of how two popular React frameworks, Remix and Next.js, handle nested layouts and routing. The goal is to illustrate their different file-based conventions for creating hierarchical user interfaces. On the left, it shows Remix's approach using a root layout and an `<Outlet />` component to render nested routes. On the right, it demonstrates Next.js's App Router, which uses a system of `layout.tsx` and `page.tsx` files to compose UI segments. The slide aims to clarify these architectural patterns for web developers choosing between or working with these technologies.
Generated Notes

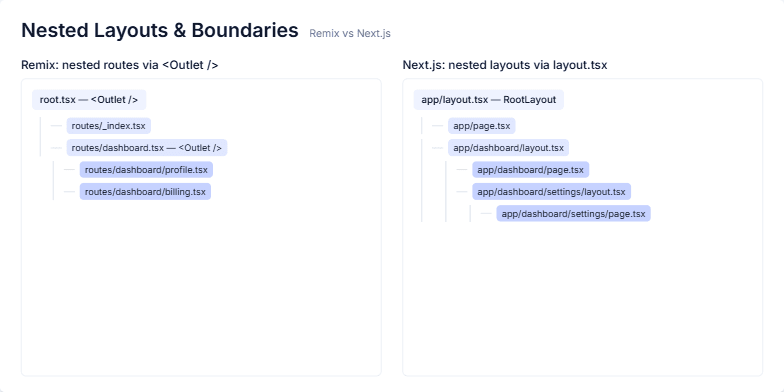

Title: We’re comparing how Remix and Next.js model nested layouts and boundaries.

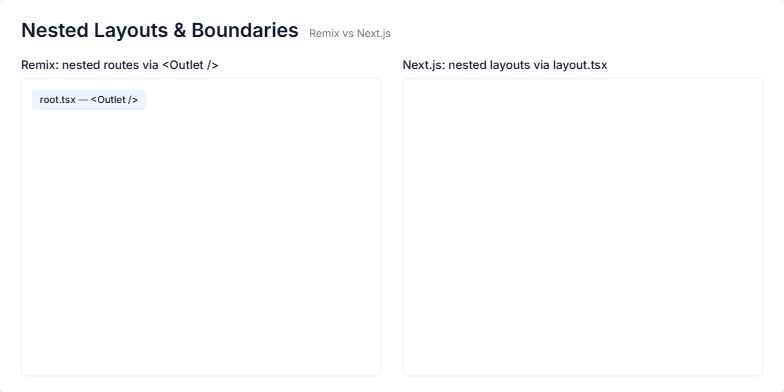

Left tree first: Remix starts with root.tsx providing a top layout and an Outlet. Emphasize that each route file can render and nest via Outlet.

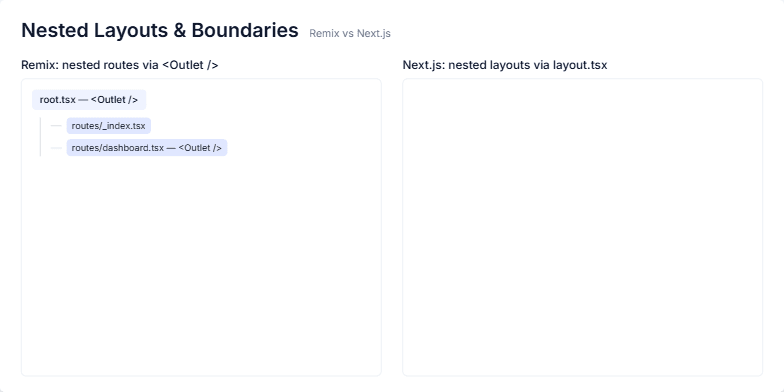

Reveal the first child routes: _index.tsx is the home route; dashboard.tsx provides its own layout plus another Outlet.
Reveal deeper nodes: profile and billing are nested under dashboard and inherit layouts progressively.

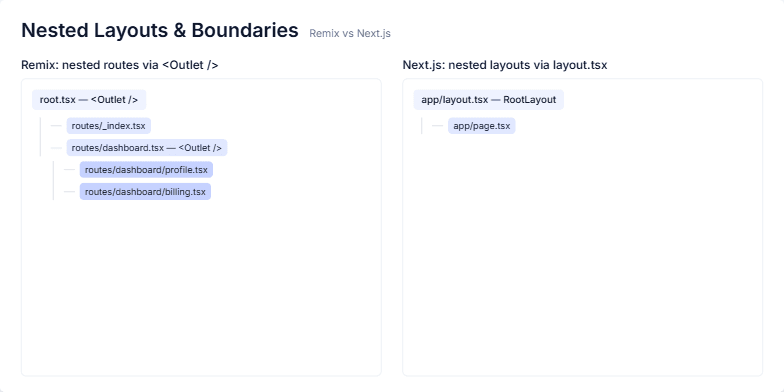

Shift to the right tree: In Next.js, app/layout.tsx is the RootLayout. Each segment can define its own layout.tsx.
Reveal deeper nodes: dashboard has its own layout and page, and settings inside dashboard introduces yet another layout, composing UI by segment.
Close with bullets: Both frameworks enable co-location of layout with route/segment and allow granular composition. This leads to clearer boundaries for data, errors, and loading states at each level.
Behind the Scenes
How AI generated this slide
- Establish the core comparison topic: 'Nested Layouts & Boundaries' between Remix and Next.js.
- Design a two-column layout to clearly present a side-by-side comparison of the two frameworks' file structures.
- Create reusable React components, `TreeRoot` and `TreeItem`, to visually represent the file hierarchy for both frameworks, ensuring a consistent and clean look.
- For the Remix side, map out the file structure starting from `root.tsx` and showing how routes like `dashboard.tsx` use `<Outlet />` to create nested views.
- For the Next.js side, illustrate the App Router's convention with `app/layout.tsx` at the top, followed by nested `layout.tsx` and `page.tsx` files within specific route segments.
- Wrap distinct parts of each tree in `<Fragment>` components to allow for sequential animation, guiding the viewer's attention through the build-up of the hierarchy.
- Integrate `framer-motion` to add subtle entry animations (fade-in and slide-up) to each fragment, enhancing visual engagement and presentation flow.
- Conclude with summary bullet points for each framework, highlighting the shared benefits of co-location and granular UI composition.
Why this slide works
This slide excels because it translates abstract software architecture concepts into a clear, digestible visual format. The side-by-side comparison is a highly effective method for highlighting the similarities and differences between Remix's `<Outlet />` system and Next.js's App Router. The use of animated fragments guides the audience through the information incrementally, preventing cognitive overload and making the complex topic easier to follow. This approach is powerful for technical presentations, as it aids comprehension and retention for developers learning about modern frontend frameworks, routing patterns, and UI composition.
Slide Code
You need to be logged in to view the slide code.
Frequently Asked Questions
What is the primary difference in how Remix and Next.js handle nested layouts?
The primary difference lies in their file conventions. Remix uses a single `routes` directory where nested routes are defined by file paths, and UI nesting is explicitly managed by placing an `<Outlet />` component in parent route files. This component acts as a placeholder for child routes. Next.js, with its App Router, uses a folder-based system where each folder can define its own UI with a `layout.tsx` file that wraps a `page.tsx` file and any child segments. The layout from each segment automatically composes with layouts from its parent segments, creating a nested UI hierarchy without an explicit Outlet component.
What is the role of `<Outlet />` in Remix's routing system?
In Remix, the `<Outlet />` component, provided by React Router, is the mechanism for rendering child routes within a parent route's UI. When you define nested routes, such as `routes/dashboard.tsx` and `routes/dashboard/profile.tsx`, the component in `dashboard.tsx` would include an `<Outlet />`. When a user navigates to `/dashboard/profile`, Remix renders the `dashboard.tsx` component, and wherever the `<Outlet />` is placed, it renders the `profile.tsx` component. This allows for shared layouts, sidebars, or headers defined in the parent route to persist across all its child routes.
How does Next.js achieve granular UI composition with its App Router?
Next.js's App Router achieves granular UI composition through its file-based routing system where each folder represents a URL segment. Each segment can have its own `layout.tsx`, `page.tsx`, `loading.tsx`, and `error.tsx` files. This co-location allows developers to define specific UI, data fetching logic, loading states, and error boundaries for each part of the application independently. Layouts are nested automatically, meaning a layout in `app/dashboard/settings/layout.tsx` will be wrapped by the layout in `app/dashboard/layout.tsx`, which is in turn wrapped by the root layout in `app/layout.tsx`. This creates a robust and scalable architecture for complex applications.
What are the common advantages of the layout systems in both Remix and Next.js?
Despite their different implementations, both frameworks' layout systems offer similar core advantages. First, they promote co-location, allowing you to keep layout components, route-specific logic, and styling within the same part of the file system, which improves maintainability. Second, they enable granular UI composition, where you can build complex interfaces by nesting smaller, independent pieces. This is crucial for creating shared UI elements like sidebars and headers that persist across routes. Finally, this structure provides clear boundaries for managing data fetching, loading states, and error handling at different levels of the UI tree, leading to a better user experience and more resilient applications.
Related Slides
I need a slide for a tech talk aimed at mid-level web developers. The goal is to compare and contrast data revalidation and caching strategies in modern web frameworks. Please create a 2x2 grid layout. The top two panels should compare Remix and Next.js. For Remix, focus on automatic revalidation and HTTP caching headers. For Next.js, highlight its fetch cache modes and tag/path-based revalidation. The bottom two panels should cover fundamental web standards: one for the 'stale-while-revalidate' pattern and another for conditional requests using ETags and Last-Modified headers. Keep the design clean and use color coding to differentiate the panels.
Create a presentation slide that compares how data mutations are handled in Remix versus Next.js. The slide should have a title 'Mutations' and a subtitle 'Remix vs Next.js'. It needs to be a two-column layout. The left column for Remix should show a code example of a form posting to a server-side `action` function, illustrate the data flow (Form -> POST -> action -> redirect), and list bullet points emphasizing progressive enhancement. The right column for Next.js should display a code example using a Server Action (`"use server"`), show its primary data flow (Form -> Server Action -> redirect), mention the alternative API Route Handler flow, and have bullet points about colocation.

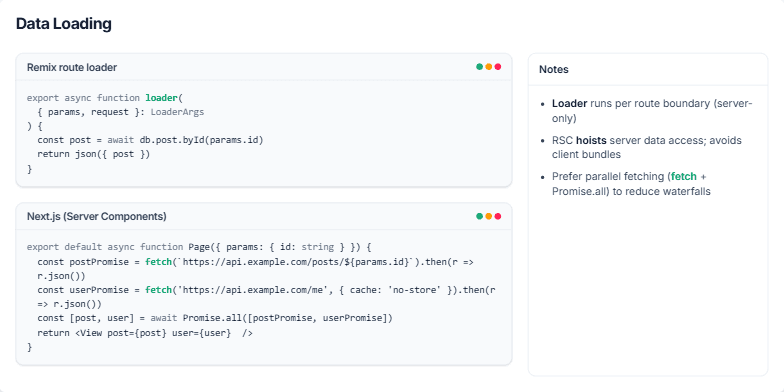

The user requested a slide that visually compares the primary data loading strategies in two popular React frameworks: Remix and Next.js. The goal is to highlight the fundamental differences in their approaches, showing a Remix `loader` function side-by-side with an `async` Next.js React Server Component. The slide should emphasize best practices like parallel data fetching to avoid request waterfalls and explain the core benefits of each pattern, such as how loaders are tied to routes and how RSCs keep data fetching logic out of the client bundle. The overall theme is to educate on modern server-side data patterns for web development.
Generate a comparative slide that breaks down the file-based routing conventions of two popular React frameworks: Remix and Next.js App Router. The slide should be visually split into two sections. The left side should showcase Remix, providing code examples for a shared layout (`_layout.tsx` with `<Outlet />`), an index route (`users._index.tsx`), and a dynamic route (`users.$id.tsx`). The right side should do the same for Next.js, with examples for `app/layout.tsx`, `app/users/page.tsx`, and a dynamic segment `app/users/[id]/page.tsx`. Use clear, concise code snippets and add annotations to highlight the core concepts, such as Remix's `Outlet` for nested rendering and Next.js's use of segmented folders and special file names like `page.tsx`.
The user requested a presentation slide that visually compares the core architectural philosophies, or "mental models," of two popular web development frameworks: Remix and Next.js. The goal was to clearly contrast how each framework handles data flow, mutations, and server-client interaction. The slide needed to be structured for easy side-by-side comparison, highlighting key features like Remix's loaders/actions and Next.js's Server Components and Server Actions. A concluding summary and detailed speaker notes were also required to help a presenter effectively explain these complex technical concepts to an audience.

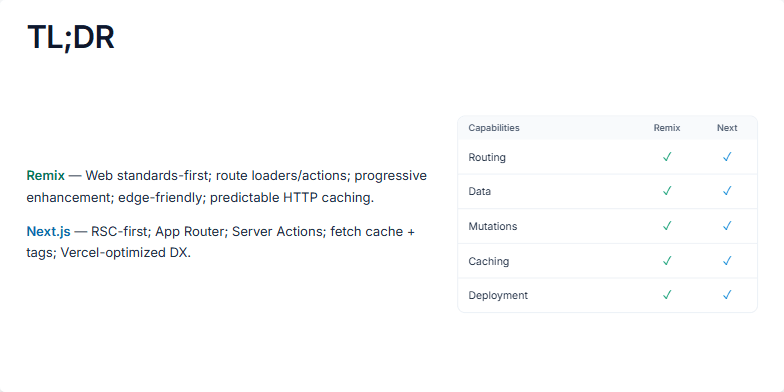

The user requested a summary slide that provides a high-level, 'TL;DR' comparison between the Remix and Next.js web development frameworks. The goal is to distill the core philosophy of each framework into concise bullet points. The slide should highlight Remix's focus on web standards, progressive enhancement, and HTTP caching, while emphasizing Next.js's adoption of React Server Components (RSC), the App Router, and its optimized developer experience with Vercel. Additionally, a comparison table was requested to visually confirm that both frameworks are fully capable and cover essential areas like routing, data, mutations, caching, and deployment.
